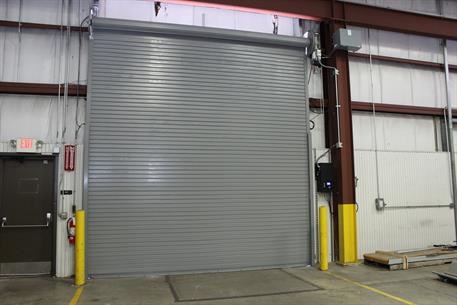

Extreme® 300 Series High Performance Rolling Door

High Performance Doors

Model Number: EPD 300 (service curtain) and EPI 300 (insulated curtain)

Higher Speed Overhead Door

Need a precision garage door? Get intelligent operation and high cycle life in a high performance roll up door. Our easy to install 300 series overhead commercial garage door offers 300,000 cycles of maintenance free performance. Improve your productivity with maximum uptime wherever it’s installed. Featuring a springless overhead door design, it is ideal for industrial rolling door applications that do not need a million cycle door, but do require continuous uptime.

Our Apex™ Smart controller features an intelligent control panel with plug and play wiring that makes installing and servicing the 300 series rolling door easier than ever before.

The commercial roll up door’s compact operator features smooth high speed operation that ensues a soft start and stop – reducing wear and tear on both the overhead door and the rolling door operator. When you need a higher speed doors, our 300 series high performance door operates at speed of up to 24 inches per second. With the operator’s direct drive design, there’s no sprocket and chain to wear or replace.

Faster rolling doors mean reduced air exchange, but our 300 series overhead door goes further to improve energy efficiency. Insulated high performance door models feature our patented Thermiser Max rolling door perimeter sealing system – which meets ASHRAE® 90.12, 2015 IECC® and California’s Title 24 air infiltration requirements with an independently tested value of ≤0.3 cfm/ft².

When you need a rapid opening, precision garage door, our Extreme 300 Overhead high performance door is the only commercial garage door you will ever need!

See if your building needs a high performance door by going to our microsite www.cornellcookson.com/nobrainerdoor/brains

Why the #$!@* is My Roll Up Door Breaking All the Time? Read our article to find out more!

Usage

These doors are constructed for continuous use and are warrantied up to 300,000 cycles (or two years). Need more than 300,000 cycles, but less than a million? This door can be upgraded to offer 500,000 cycles with a 3 year warranty.

If you have an opening that only needs standard cycles, meaning less than 20 cycles per day, please consider our standard service or insulated product lines.

Standard Materials & Finishes

Extreme® 300 Series Performance Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:

Galvanized steel:
- Finished with a rust-inhibiting CycleShield® finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
  - Friction and wear-resistant for high-cycle applications
  - Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
  - Recommended for exterior, corrosive and/or abrasive environments
  - Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.

300 series stainless steel with a #4 finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Extreme® Series Door Drive & Control System

This door features our first intelligent control panel - the Apex™ SmartController. It features:

Plug-and-play connections between the motor, control panel, and standard sensors
LCD screen that walks user through:
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments

This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety. It is IP54 rated, which is equivalent to NEMA 3/3S.

Sizes

Service Door Curtain:

Standard construction up to 30' wide, 20' high

Insulated Door Curtain:

Standard construction up to 24' wide, 20' high

For openings that fall outside of the standard construction, please contact us.

Standard construction up to 30' wide, 30' high

For openings that fall outside of the standard construction, please contact us

Standard construction up to 30' wide, 30' high

For openings that fall outside of the standard construction, please contact us

Videos

Testimonials

Check Out How We've Helped These Clients With Custom Closure Solutions:

"We are very pleased with the performance of the Cornell doors. Throughout the area, doors are blown out everywhere and the building we just moved from was destroyed. Here, our $2.3 million of inventory was saved. Being satisfied with the Cornelldoors is an understatement!"

ROGER WEIR, OPERATIONS MANAGER AT LEWIS BEAR COMPANY

"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."

MARK WORMAN, OWNER OF GRAVEYARD CARZ

"The existing grilles we had installed prior could not stand up to the cycle usage, and they needed a lot of maintenance. Cornell's Extreme Performance 324 grille is the right product, far superior to the other grilles we had in this opening before. We are really happy with the performance and will definitely purchase this product going forward, when the next opportunity arises."

MARK ARGABRIGHT, FACILITY MANAGER AT YOHN PROPERTY MANAGEMENT

"Not only was functionality a major concern, but we also needed a custom closure solution that worked with the overall exterior aesthetic of the building which is rooted in neighborhood context. We collaborated with CornellCookson to develop a solution that is both functional and architecturally sensitive."

EUGENE FLOTTERON, CETRARUDDY ARCHITECTURE

"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."

DONALD FOX, FOX THEATERS

View Our Project Gallery for More Case Studies

Specification Sheets

Use the Specification Generator to create custom specifications.

BIM Objects

300 Series Mounted to Face of Wall

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Insulated Door Drawing Generator
Service Door Drawing Generator

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Performance Upgrades

Vibration Isolators

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
Learn More

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Aesthetics

LED Light Kit

Learn More

Custom Slats

Slats with multiple small window size punched slots that create an open curtain design. Maintains a high level of security while allowing for ventilation and visibility.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Learn More

Safety and Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

WeatherGard™

Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.

Learn More

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Windload Options

The Extreme 300 Series Door offers the below windload options:
- Static up to 50 PSF design windload.
- Operational up to 10 PSF maximum wind load.

SmartSync Diagnostic Tool

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller—streamlining your workflows and helping customers get back to business.
