Model Number: ESD10
Overhead Rolling Door
Service doors provide security against entry as well as protection from weather at exterior and interior openings in industrial, commercial, institutional and other buildings. These doors are made from slats of formed galvanized steel, aluminum or stainless steel that roll up to store in a coil above an opening.
When you need an interior or exterior overhead door that is secure, durable, customizable and compact – you need a rolling service door. Our overhead service doors feature a rugged design manufactured with quality materials that lower the total cost of ownership. And, because we custom build each roll up door to your exact aesthetic specifications, we can create a rolling door that seamlessly fits into your existing designs.
As the rolling service door industry leader, Cornell has many overhead coiling doors to meet your needs. Whether you are in need of an exterior door, security door or insulated door, all our overhead rolling doors are custom made to your specifications. Rolling service doors are available in a variety of materials, finishes, gauges and options.
If you are interested in a service door that is configured to withstand an operational wind load of 20 PSF, please check out our Wind-Master Door.
Interested in a sectional product? Our ADS team can help! Visit our new Architect Portal
- Standard construction up to 30' wide, 30' high
- For openings that fall outside of the standard construction, please contact us
The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.
If your requirements call for more than 20 cycles per day, or 50,000 cycles lifetime, visit our line of High Performance Doors.
Standard Materials & Finishes
Standard door curtains are available in:
- Galvanized Steel:
|Slat Gauge||GalvaNex Color|
- 20 gauge 300 series stainless steel:
- #4 finish
- Structural stainless
- #16 B&S gauge aluminum:
- Mill, clear or color anodized finish
Click here for additional material and finishes options and information
Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.
Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.
Model MG – A medium duty operator for doors that will cycle no more than 20 times per day
Model SG – A super duty, full logic operator for larger doors or doors which may periodically cycle more than 20 times per day
Click here for additional operator information.
Check Out How We've Helped These Clients With Custom Closure Solutions:
"We are very pleased with the performance of the Cornell doors. Throughout the area, doors are blown out everywhere and the building we just moved from was destroyed. Here, our $2.3 million of inventory was saved. Being satisfied with the Cornelldoors is an understatement!"
ROGER WEIR, OPERATIONS MANAGER AT LEWIS BEAR COMPANY
"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."
MARK WORMAN, OWNER OF GRAVEYARD CARZ
"The existing grilles we had installed prior could not stand up to the cycle usage, and they needed a lot of maintenance. Cornell's Extreme Performance 324 grille is the right product, far superior to the other grilles we had in this opening before. We are really happy with the performance and will definitely purchase this product going forward, when the next opportunity arises."
MARK ARGABRIGHT, FACILITY MANAGER AT YOHN PROPERTY MANAGEMENT
"Not only was functionality a major concern, but we also needed a custom closure solution that worked with the overall exterior aesthetic of the building which is rooted in neighborhood context. We collaborated with CornellCookson to develop a solution that is both functional and architecturally sensitive."
EUGENE FLOTTERON, CETRARUDDY ARCHITECTURE
"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."
DONALD FOX, FOX THEATERS
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
Chain Diverter for MGH Operators
This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.

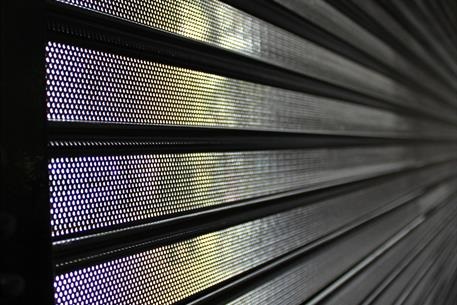

Slats with multiple small window size punched slots that create an open curtain design. Maintains a high level of security while allowing for ventilation and visibility.Learn More
AtmoShield™ Powder CoatingTextured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More

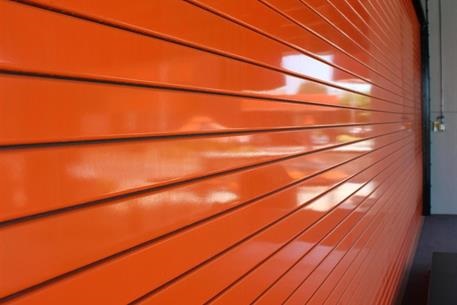

SpectraShield™ Powder Coating
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

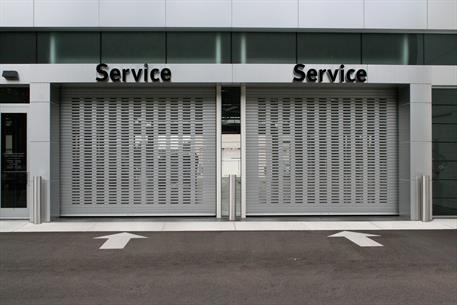

Vision WindowsImprove aesthetics and visibility with one- or two-way windows incorporated in the curtain.

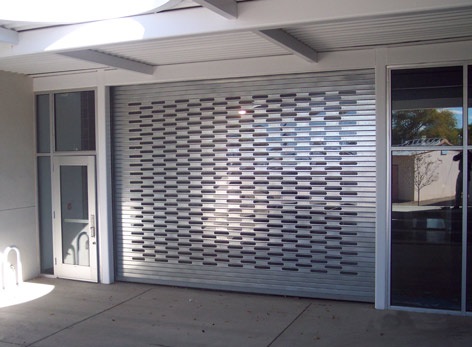

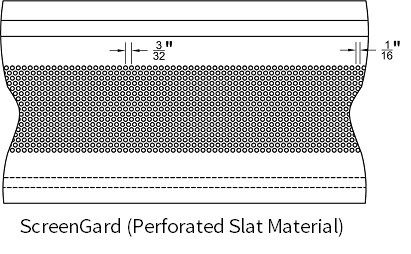

ScreenGard Perforated Slats
Achieve the best of both worlds - ScreenGard perforated slats provide the security of a rolling service door and the visibility and ventilation of a grille. It is available in Galvanized Steel and Aluminum.
Trim PackageIn applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.
ImageMatch™ FinishA unique ultra violet-cured printing process that produces vibrant, full-color designs on doors up to 18’ wide*. Replicate any logo, design, or photo with impeccable detail.
*May be available in larger sizes, please contact CornellCookson for more details.
LED Light Kit
The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
Magic SwitchA touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.
High Cycle SpringsHeavy duty springs manufactured to withstand cycles of 100,000.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
SafetyGard UL325 Approved Light Curtain
A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

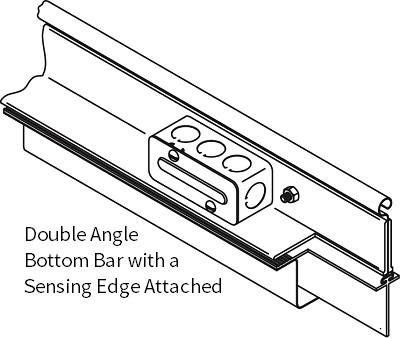

Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Guide-Mounted InterlocksAn electrical cutout switch to prevent motor operation if locking device is not first disengaged.
HDBB (Heavy Duty Bottom Bar)
The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.
RapidResponse doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.
RapidResponse Options Page
Rolling Door Protector (RDP)
The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.
Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.
Static Wind LoadCan be configured to withstand the full range of specific wind load requirements including missile impact ratings.
Operational Wind LoadCan be configured to withstand an operational wind load of 20 PSF.
Pass DoorsHollow metal man door and hinged frame available within a curtain.
Sloping or Irregular OpeningsOur special bottom bar designs can address these conditions.
Superimposed DoorsCombine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.
Combine two different slat profiles in the same curtain. Typically, a standard slat is combined with a perforated slat or even rolling grille for ventilation and security.
MullionsThere are multiple mullion options - corner, fixed and removable.
Finishes Colors & OptionsFinishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart
Vibration IsolatorsVibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
SmartSync Wireless Safety Edge
The Smartsync Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.
