Fire Rated Counter Shutters | Fire Retardant ShuttersCounter Fire Door
Model Number: ERC10 and ERC20

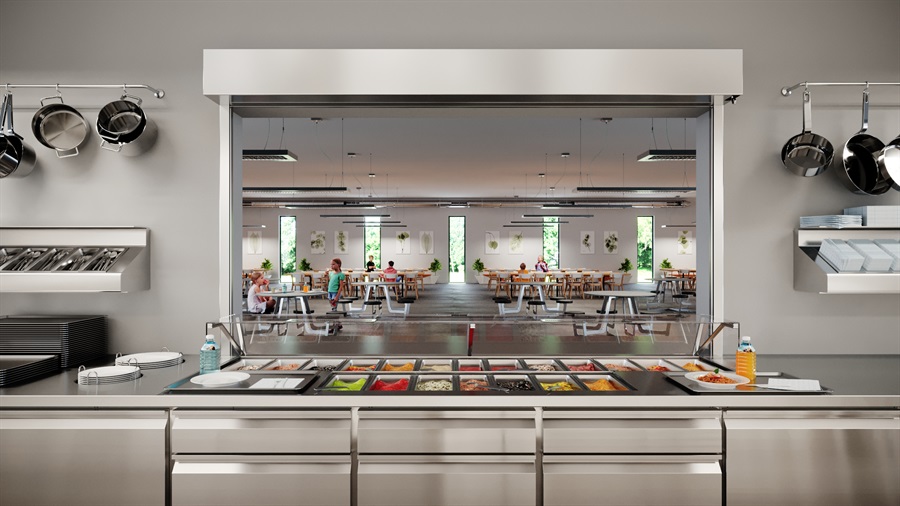

Rated Roll Up Fire Rated Counter Shutters
In the event of a fire, our fire rated counter shutters are used as a structural barrier in both counter height and full height openings to compartmentalize the building and prevent the spread of fire. They can be used anywhere that requires a closure that is UL labeled for up to 3 hours.
When our rolling fire shutters are combined with our innovative operating systems, they provide failsafe activation that drops the shutter at a safe and reliable rate of speed at the first sign of smoke or fire.
Fire rated counter shutters are custom built to exact opening specifications using compact guides, slats, brackets and hoods for a smooth profile.
Integral Frame and Sill
We also offer integral frame and sill units that are UL labeled for 1 ½ hours. Integral Frame units offer a custom appearance and a quick install, slipping easily into an existing wall.
SmokeShield - Smoke & Draft Control
Smoke kills more often than fire, which is why we offer an optional SmokeShield package. It offers exceptional smoke and draft control that is listed to UL1784 and assures that smoke will be compartmentalized with the fire and not spread throughout the facility.
Our rated counter shutters come in the following standard height and width parameters:
If your maximum height is less than or equal to…
…your maximum width available is:
For openings that fall outside of the standard construction, please contact us.
Standard Materials and Finishes
Counter Fire Shutter curtains are available in:
- 22 gauge galvanized steel
- Exclusive GalvaNex™ finish in gray, tan or white
- 22 gauge 304 series stainless steel
- #4 finish
Click here for additional material and finishes options and information.
Rolling Counter Fire Shutters are for use in rated masonry or drywall construction (wood or metal studs).
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Counter Fire Door Drawing Generator
Counter Fire Door with Integral Frame Drawing Generator
Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.
Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.
Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection
SmokeShield® Seal Package
Often required by local building codes, our smoke seal adds smoke and draft control.Learn More
Optional safety devices on provide a visual and/or audible advanced warning when the door is about to close .
Battery Back Up Devices
Available for motor, chain and crank operators, these devices prevent fire doors from closing from a power failure.Learn More
Firefly & Firefly BB Release Device
Optional device that ties in to a building alarm system and closes a FireGard fire door upon alarm activation, rather than by melting its fusible link.
AtmoShield™ Powder CoatingTextured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More
SpectraShield™ Powder Coating
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
ImageMatch™ FinishA unique ultra violet-cured printing process that produces vibrant, full-color designs on doors up to 18’ wide*. Replicate any logo, design, or photo with impeccable detail.
*May be available in larger sizes, please contact CornellCookson for more details.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Safely and conveniently test and reset the functionality of the fire door at floor level. May be flush or recess mounted.
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Guide-Mounted InterlocksAn electrical cutout switch to prevent motor operation if locking device is not first disengaged.
Rated Integral Frame and SillOur Rolling Counter Fire Shutters with Integral Frame and Sill (counter top) are designed with reduced coil, bracket and header size (8” minimum) to fit tight clearances.
Countertops are available for a complete counter shutter closure solution, and can be UL rated.Learn More
