StoreDefender™ Door | Defender SeriesDefender Series
Model Number: PSD10, PSD20
The StoreDefender™ Door is our newest addition to the Defender series. It offers a sweet spot for riot protection. It is a step above a standard 18 gauge heavy-duty rolling door, but does not quite reach the level of security and cost of the EntryDefender® Door.
It features an 18 gauge curtain, 6” heavy duty bottom bar, tamper resistant fasteners and continuous wind locks that keep the curtain in place during crowd pressure. It also comes with a screw kit that will allow the top slats to be attached to the barrel to prevent lifting attempts. All of these components make the StoreDefender™ Door able to withstand a moderate risk attack with 3+ attackers and a few hand tools.

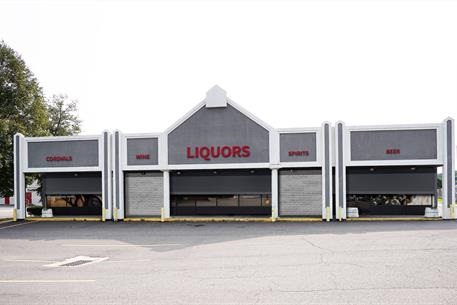

The StoreDefender™ Door is extremely versatile, making it ideal for any storefront or back of house application. It is available as a standard service door or a Thermiser Max insulated door, it can be installed interior or exterior and is available in all of our standard finishes in addition to more than 180 powder coat colors.
Tested* to more than 2500 lbs. for deflection (did not test to failure, bottom bar deflection of 3")
*The door used for testing was 14'1" x 10'
This door is available in 2’4” x 3’ to 30’ x 40’.
Standard Materials and Finishes
Curtain - 18 gauge galvanized steel with GalvaNex™ polyester enamel finish in Gray, Tan, White or Brown.
Guides – Structural steel with powder coat to match the curtain.
Bottom bar - 6” tall made of aluminum in mill or powder coat finish.
The MG industrial duty operator is standard. The SGH super duty operator is optional for applications requiring over 20 cycles per day.
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
AtmoShield™ Powder CoatingTextured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
SpectraShield™ Powder Coat Finish
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
LED Light Kit
The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
Finishes Colors & OptionsFinishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart
Vibration IsolatorsVibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
SmartSync Wireless Safety Edge
The Smartsync Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.
