High Performance

Model Number: HCESD10 & HCESD30

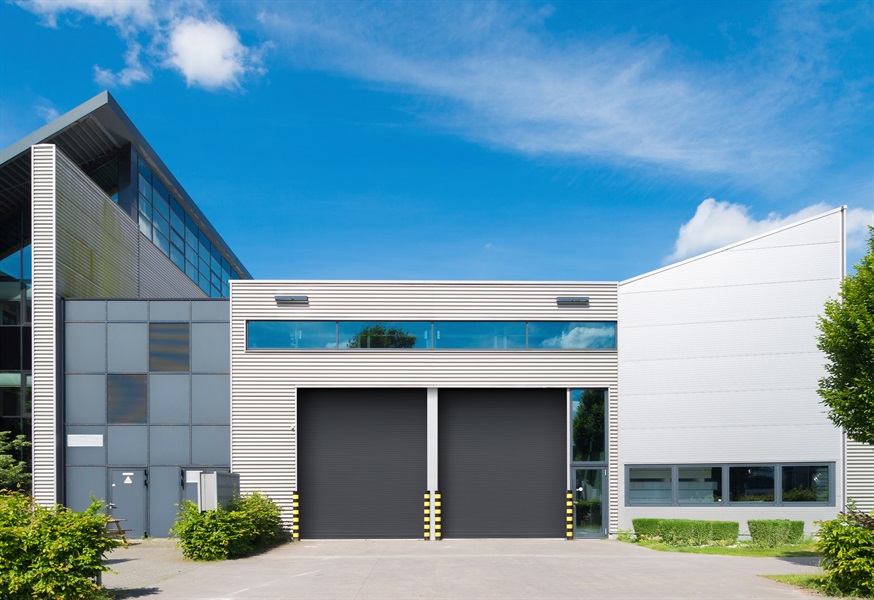

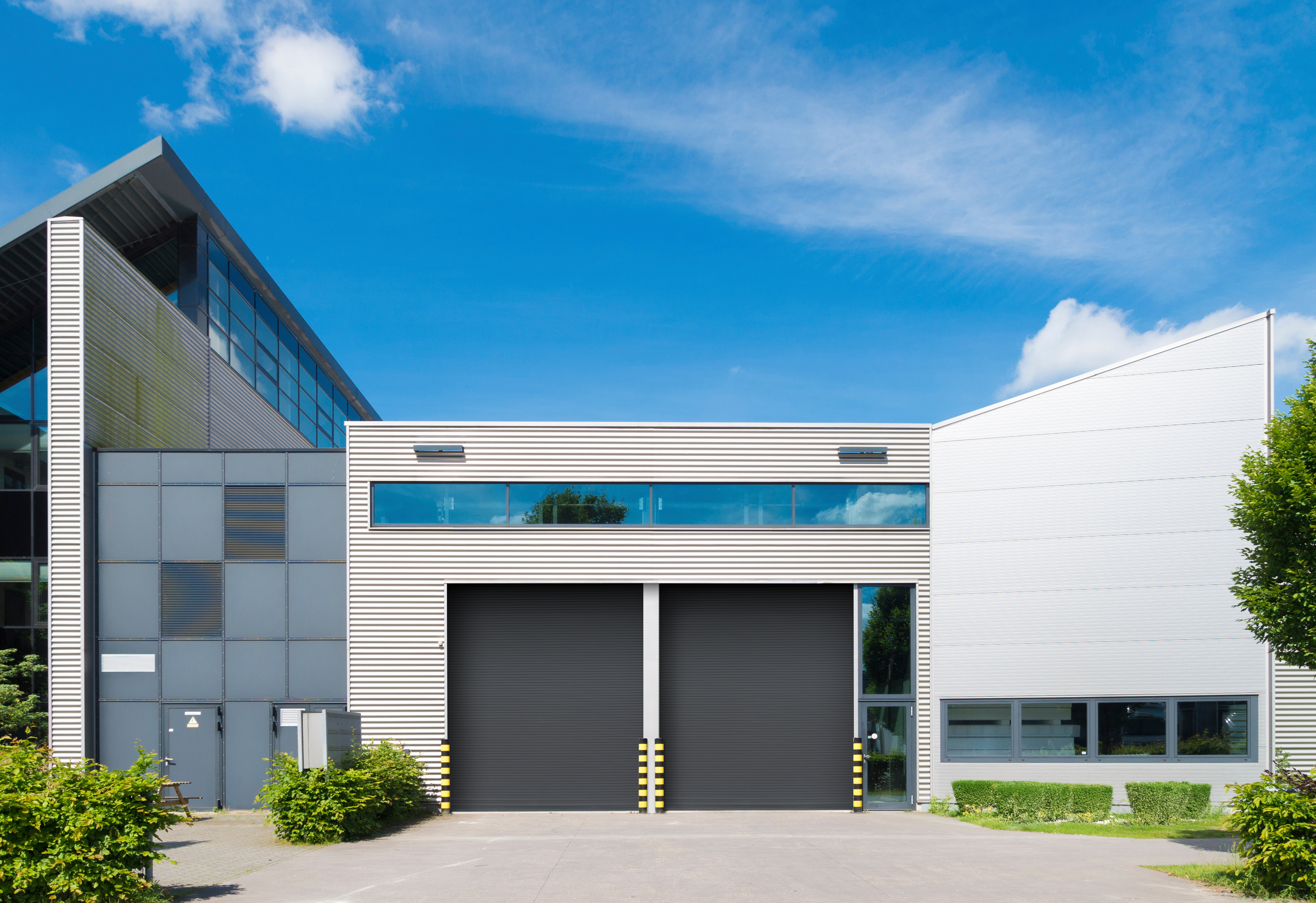

TruCycle^™ High-Cycle Commercial Door

Your business doesn't stop. Neither should your commercial doors. The TruCycle^™ Door delivers high-cycle durability with smart efficiency, serving as a powerful upgrade to a standard service door and a cost-effective alternative to a high-speed door. We engineered it to master constant motion by removing the springs—the #1 cause of failure in industrial doors—ensuring truly low-maintenance and uninterrupted performance.

A robust direct-drive operator and Variable Frequency Drive (VFD) result in smooth starts and stops, dramatically reducing wear on mechanical components to extend the life of the entire system. The motor-mounted VFD pairs with our smallest-ever APEX Core Controller for reliable diagnostics and effortless ground-level commissioning.

The TruCycle Door excels as a robust loading dock door in logistics hubs and as a dependable parking garage door where traffic flow is nonstop. Offered in both service and insulated models (HCESD30), its performance is guaranteed with our industry-leading 3-year/500,000-cycle warranty. The insulated model comes standard with our Energy-Efficient Air Infiltration Package, reducing air infiltration by up to 94%* compared to standard doors.

*Results based on third-party testing against a standard, non-insulated rolling door.

For openings that demand nonstop performance with added visibility and airflow, the TruCycle Security Grille offers the same springless engineering, guaranteed for 300,000 cycles. See it here.

Need A Dealer Need Design Help

Usage

These doors are designed to handle heavy, continuous traffic.

To ensure consistent, cycle-to-cycle performance, every TruCycle Door includes a powerful 3-year or 500,000-cycle warranty, whichever comes first.

Standard Materials & Finishes

TruCycle Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:

Galvanized steel:
- Finished with a rust-inhibiting CycleShield® finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
  - Friction and wear-resistant for high-cycle applications
  - Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
  - Recommended for exterior, corrosive and/or abrasive environments
  - Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.

300 series stainless steel with a #4 finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Operation

The TruCycle Door utilizes a direct-drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your door system. The operating system pairs with the APEX™ Core SmartController, putting reliable performance diagnostics at your fingertips.

Sizes

Max Width: 30'
Max Height: 20'

For openings that fall outside of the standard construction, please contact us.

Videos

Specification Sheets

Use the Specification Generator to create custom specifications.

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Windload Options

Static & Operational Windload

Static up to 50 PSF design wind-load.
Operational up to 10 PSF maximum wind-load.

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Unique Features

APEX Core SmartController

This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.

Monitored Protection

Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.

120V Compatibility

The system is compatible with 120V input via an optional wall-mounted transformer. The required mounting space is 13.5" wide by 16.125" high.

SmartSync Diagnostic Tool

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller—streamlining your workflows and helping customers get back to business.
