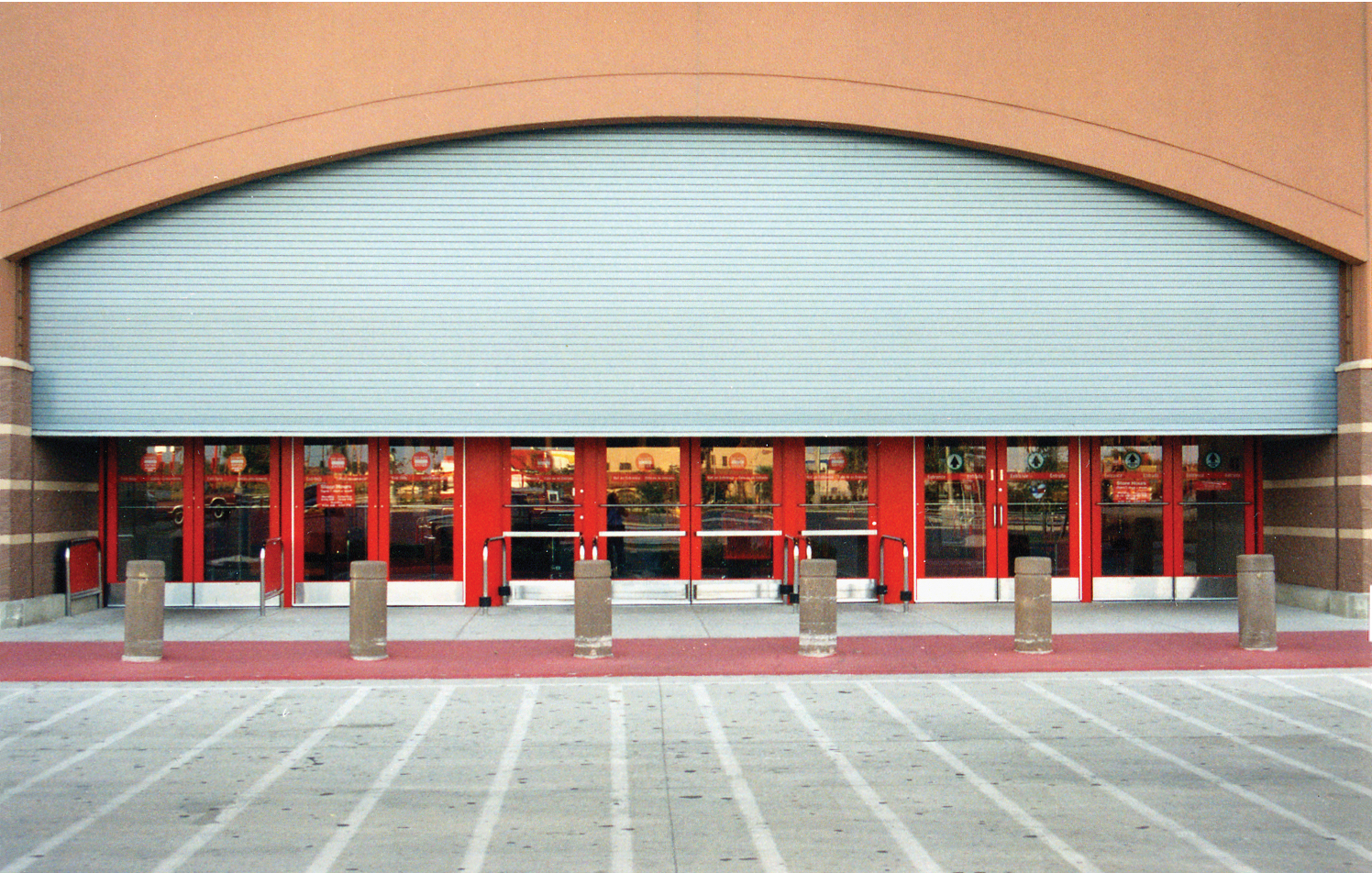

Motor Operation
Motor operation is the most effective and consistent method of opening larger, higher cycle doors and offers the following benefits:
- Door Longevity: Offers the most consistent method of operation, and as such, maximizes door longevity
- Ease of Use: Can link to one-touch, or even no touch, opening triggers such as a push button station or a loop detector
- Safety: Accommodates entrapment devices such as photo eyes and sensing edges
- Remote Activation: Can be integrated into master building controls to operate doors remotely
- Durable: Can be designed to withstand weather, chemicals, or even explosions
Motor operation does require power to the opening and enough clearance to mount the motor. In the event of a power outage, auxiliary operators can be used (push up or chain, depending on door size and configuration). You often see motor operators in parking garages, distribution facilities, paint booths, and car washes.

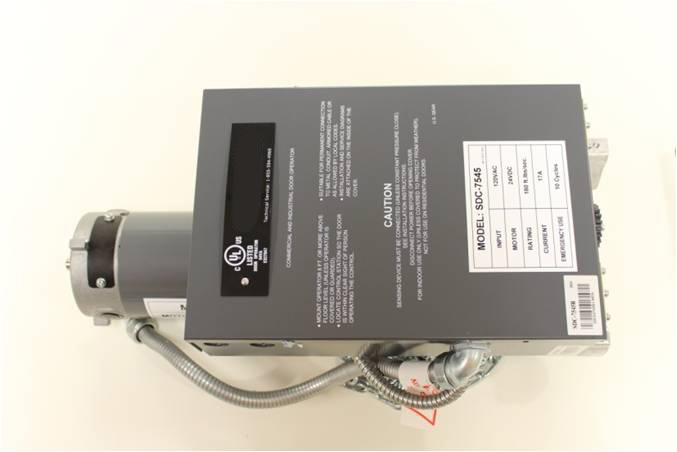

Cornell EverGard Operator with Battery Back-up
The EverGard operator features a battery back-up that activates in the absence of AC power. It’s a UL listed, gear head DC operator rated for a maximum of 10 cycles per day. It features the following:
- Back-up battery to be used in the absence of AC power for a minimum of 48 hours and up to 10 cycles
- Rechargeable battery
- Programmable battery self testing
- Separate programmable control box and back-up power unit
- Control box can be installed up to 120 ft away from the monitor
- Remote monitoring diagnostics
- Totally Enclosed Non-Ventilated (TENV) motor
- Motor mounted interlock available to ½ HP
- Compact operator/mounting configuration
Cycle Rating: Rated for a maximum of 10 cycles per day.
HP: Factory will advise on minimum HP for specific door size and configuration
Volts: 120

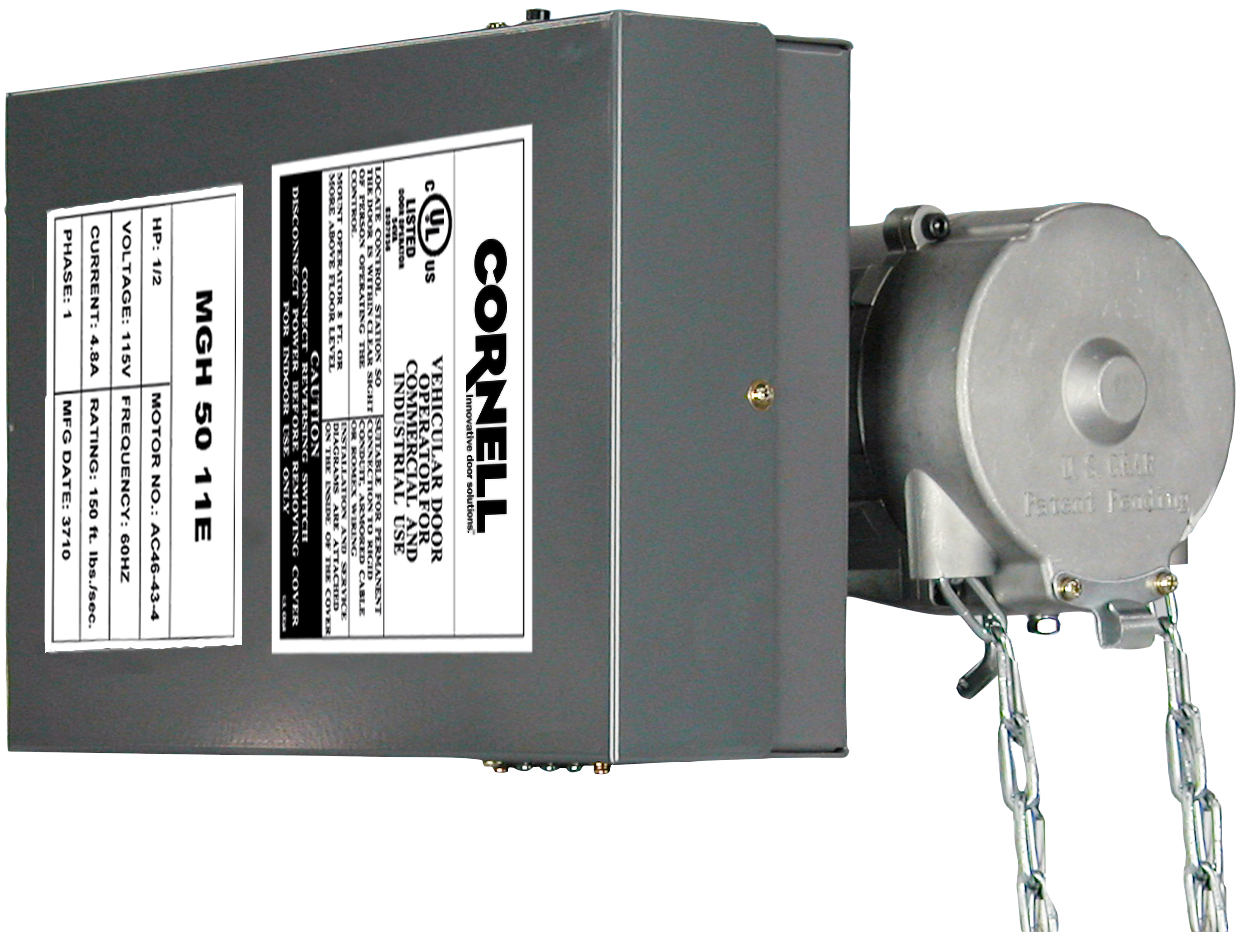

Cornell MG Operator
Our MG motor is our industrial duty motor operator. It’s a UL listed, gear head operator rated for a maximum of 20 cycles per day. It features the following:
- Totally Enclosed Non-Ventilated (TENV) motor
- Motor mounted interlock available to 1/2 HP
- Factory pre-wired motor control terminals
- Maintenance free, solenoid actuated brake
- Overload protection
- Lubricated, heavy-duty gears
- Compact operator / mounting configuration
- Fully adjustable, driven linear screw type cam limit switch mechanism
- Auxiliary manual chain hoist for emergency operation or provisions for auxiliary push-up operation is available. Auxiliary chain hoist safely cuts operator power when engaged: just pull to operate
Cycle Rating: Rated for a maximum of 20 cycles per day.
HP: Factory will advise on minimum HP for specific door size and configuration
Volts: 115, 208/230, 460 and 575.
Cornell SG Motor Operator
Our SG motor is our super duty motor operator. It’s a UL listed, gear head operator designed for continuous, higher cycle use that exceed 20 cycles per day. It features the following:
- Totally Enclosed Fan Cooled (TEFC) motor
- Factory pre-wired motor control terminals
- Maintenance free, solenoid actuated brake
- Overload protection
- Lubricated, heavy-duty gears
- Compact operator / mounting configuration
- Fully adjustable, driven linear screw type cam limit switch mechanism
- Auxiliary manual chain hoist for emergency operation provided up to 2 HP as standard. Auxiliary chain hoist automatically engages when motor is not energized - just pull to operate
Cycle Rating: designed for continuous use.
HP: Factory will advise on minimum HP for specific door size and configuration
Voltage: 115, 208/230, 460 and 575
Concealed Tubular Motors
A concealed tubular motor offers a smaller, more compact motor design for counter shutters, fire shutters, grilles and gates. It is the ideal solution for strict dimensional limitations around the header, as it requires less clearance than standard motor operators. In addition, due to its reduced size, it is ideal for enhancing aesthetics.
Benefits of Tube Motor Operators:
- Convenience of motor operation in a low profile, concealed design
- Promotes ergonomic operation of counter door units without sacrificing aesthetics
- Quiet and smooth motor operation
- Motor drive chain is not required
- Auxiliary crank operation standard
Recommended Applications:
- Counter Doors or Grilles that require convenient motor operation in limited headroom conditions
- Aesthetic motor operation that eliminates the need for a bulky motor cover
- Low cycle applications, rated for 10 cycles per day, 4 per hour
- Operation for greater than 10 minutes/10 cycles on a maximum size unit may engage thermal overload, after which the operator must be allowed to cool for approximately 15 minutes to return to service
Product Application Requirements:
- The tube motor requires 115 VAC power
- Counter Shutter – Maximum width of 21’ 4” - Maximum height of 10’ 4” - Maximum of 180 Square Feet
- Counter Shutters with Integral Frame and Sill – 11’ 7” wide by 4’ 10” high
- VisionAire Grilles/SentryGate Grilles - Size limits based on operator rating and curtain configuration
